NO |
STANDARD FEATURES |
DESCRIPTION |
QUANTITY |
| 1 |
Sandblasting Cabinet Air Suction Fan |
1.1 kWh Fan Motor |
1 |
| 2 |
Sandblasting Cabinet |
Laser Cut 1100x1000x1000mm Dimension. Loading Capacity: 750kg. One Gate. All parts contacted to water and sand minture are stainless steel. |
1 |
| 3 |
Elektrical Panel |
Motor Protected. Air Pressure, Sand Injection and Phase Gauge |
1 |
| 4 |
Sandblasting Nozzle |
Swiss Brand Nomat Boron Carbide Nozzle, 1500 Hours Running Guarantee |
1 |
| 5 |
Sandblasting Gun |
Hardened Steel Body, 1,2 m3/min Sand-air Mixture Blasting at 6 Bar, Custom Made Injector |
1 |
| 6 |
Lighting |
2x18 watt Led Light |
2 |
| 7 |
Foot Pedal |
Foot Protected Double Exit |
1 |
| 8 |
Regulator |
Adjustable Sandblasting Pressure |
2 |
| 9 |
Sandblasting Glove |
24" 1. Quality Rubber, Knurled Pattern |
4 |
| 10 |
Sight Glass |
Panaromic, |
1 |
| 11 |
Sandblasting System |
Injection Sandblasting System, Adjustable Blasting Amount (Max Control with Pressure and Sand Regulator) |
1 |
| 12 |
Electrostatic Paint |
Ral 7035 |
1 |
| 13 |
Sand And Water Amount Gauge |
Gauges at Cabinet Chamber |
2 |
| 14 |
Gun Stabilization |
Ability To Operate With Two Hands |
1 |
| 15 |
Electrical Sight Glass Wiper |
Provides High Visibility While Blasting |
1 |
| 16 |
PLC Controlled, Touch-screen and Water Heating System |
TFT 7” Screen, 3,5 kWh Resistor |
1 Set |
| 17 |
Cabinet Safety Package |
Gate Switches, Solenoid Valve and Custom Made Dashboard |
1 Set |
| 18 |
Manuel Turntable |
80 cm Diameter |
1 |
| 19 |
Loading And Transport Stand |
Rail System |
1 |
|

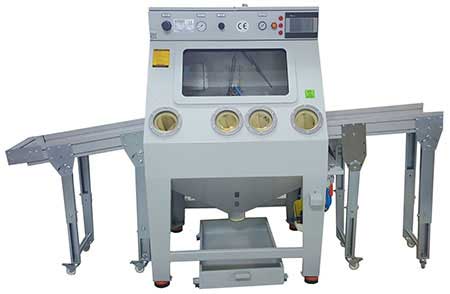

Wet Blasting Cabinet with Conveyor is designed for precision sandblasting especially for barrel cleaning, providing dustless working and brilliant surface quality of the materials could bring to. This Wet Sandblasting Cabinet's working principle and design completely belong to our company. The Injection System offers maximum control with the Spray Quantity Adjustment Feature (Pressure and sand feed regulator).
|
