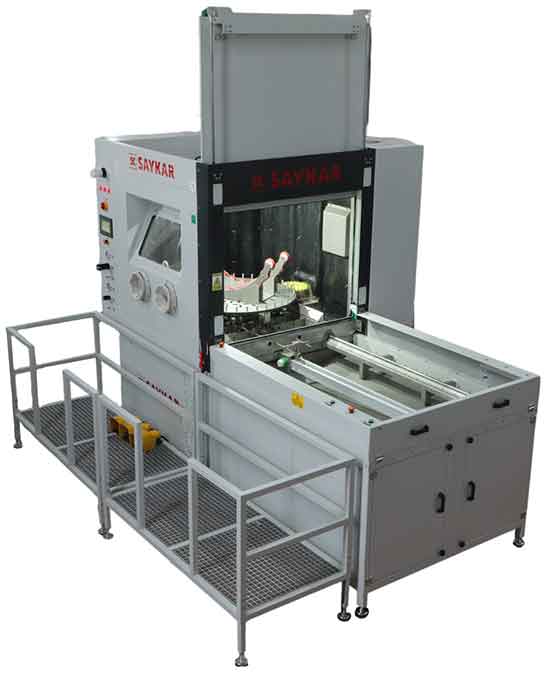

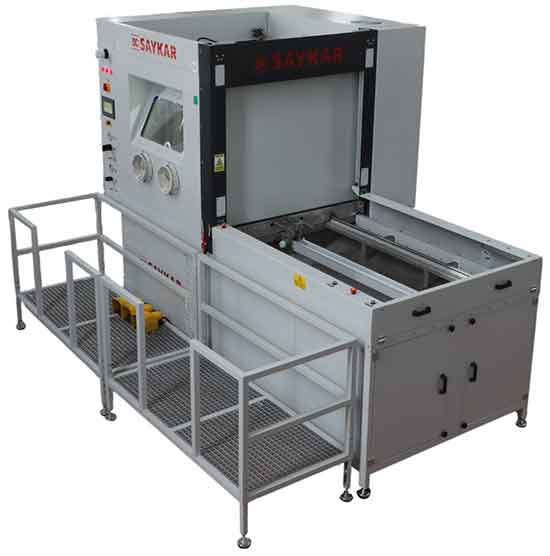

| SK 1215 AUTOMATIC WET BLASTING MACHINE BASIC FEATURES AND ADVANTAGES |
SK 1215 Automatic Wet Blasting Machine can be used for surface cleaning of extrusion molds, rubber molds and all molds that require sensitive surface cleaning, as well as all parts that structurally have the possibility of sandblasting from above, to prepare the surfaces before coating or surface finishing after coating.
Automatic Rotary Table Unit, Automatic Part Turning Unit, Automatic Nozzle Movement System and Sandblasting Nozzles' distances to the part can be adjusted automatically.
This sandblasting machine is designed for automatic/manual processing of the upper surfaces of circular molds and parts.
Mold parts weighing 700 kg can be sandblasted with its 1000 mm (net 995 mm) diameter rotary table.
SK 1215 Automatic Wet Blasting Machine has operator platforms at the front where part entry and maintenance can be done easily.
It has front operator platforms where part entry and maintenance can be done easily.
There is a water gun and an air gun that the operator can use for parts washing at the front, which is used as a loading and unloading station,
The machine has been manufactured in accordance with all applicable safety measures, and the Sandblasting Cabin part is protected against wear and tear with rubber coating.
|
Machine functions are controlled via the touch screen, and Delta products are used in the control system.
Via Touch Screen;
a) Vertical positions of nozzles
b) Scanning speed of the nozzles
c) Turntable rotation speed and direction
d) Sandblasting time
e) Filtration system
f) Maintenance tables
g) Warning and Error messages can be accessed and all data can be prescribed.
Assignments at different authority levels can be made via the touch screen also.
Saykar has been manufacturing surface treatment machines working with pressurised air since 2003. The design and principles of operation of these machines are entirely owned by Saykar. SK 1215 Automatic Wet Blasting Machine is one of them.
Our machines are used safely in many companies worldwide. For example: Italy, Spain, Germany, France, Bulgaria, Slovakia, Kosovo, Iran, Kuwait, Egypt, Iraq, Azerbaijan, Georgia, UAE. Our machines provide superior functionality and aesthetics. Longer service life, less maintenance times, process safety, fast service and technical information support are also among the advantages we can offer you.
"Explore Our Wet Blasting Machines, Visit Our Showroom and Decide with Confidence. See Our Machines For Yourself"
CE |
 |
|
Wet Blasting Process
Wet blasting is a process developed with the aim of meeting the need of high quality surface finishing in a wide variety of area usage.
This process uses a mixture of water and abrasive at certain rates. This slurry is pumped from the tank to the blasting gun. The slurry meets compressed air in the mixing chamber, creating a highly powerful blast stream. This stream accelerates though the boron carbide nozzles, ensuring the ideal blasting. After impacting upon the surface, the slurry goes back to the mixing chamber, recirculates through the same system for continuous use.
As in the case with dry blasting, the main role in obtaining the required surface is played by the abrasive. This offers a great variety and controllability since the form, hardness and size of abrasive particles can be chosen according to the application, in order to get the desired surface. We provide recommendations and essential technical information in choosing the abrasive which suits the application the best. Wet sandblasting not only ends in an extremely clean and high-quality surface, but it also facilitates the nitration action. The nitrogen diffuses very easily through the wet blasted surface.The duration during which the abrasive can be used depends on various factors such as pressure of the air, number of guns and operating time.
As mentioned above, the fluid dynamics lubricates the abrasive and ensures a less aggressive and tenderer blasting. Consistent flow provided by the water protects the surface and the geometrical shape of the die. One of the most significant advantages of the wet blasting is that the slurry can find serpentine ways over the tangled surfaces by the help of water and provide a homogeneous polishing over every type of surfaces.
The suitable abrasive should be chosen taking account of its endurance and the hardness
of the surface.
As the usage of abrasive together with water can cause corrosion, all parts which are exposed to water are made from stainless steel in our machines.
Wet blasting technology offers a more effective and constant polishing action when compared to conventional dry blasting systems. Wet sandblasting can remove deeply
imbedded contaminations on the material without causing any damage to the substrate below.
Wet blasting process offers a better work environment. The usage of water defeats the problem of airborne particles and prevents their accumulation around the machines. This industrial hygiene eliminates additional cleaning and maintenance needs.
Wet blasting offers a flexible and successful solution in the cleaning of materials and in every area it is used, thanks to the variety of process parameters and high controllability.
Wet blasting is a process developed with the aim of meeting the need of high quality surface finishing in a wide variety of area usage.
