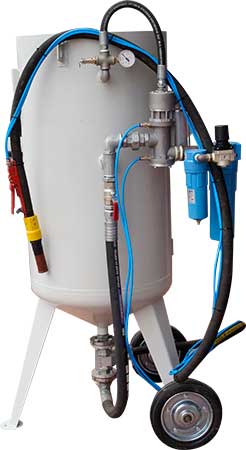

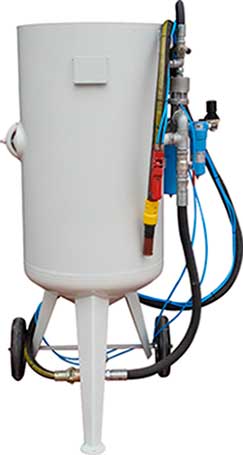

SK 300 WET SANDBLASTING POT SET |
• Respiratory Additional Safety Equipments |
• Pneumatic Remote Control Valve |
• Custom Made Rubber Pot Plug |
|
|
|
• Sand Regulating Valve, Custom Made |

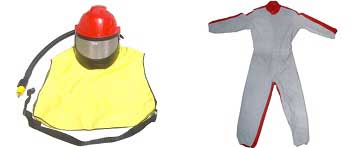

• Top Quality Sandblasting Helmet & Suit |
|
|

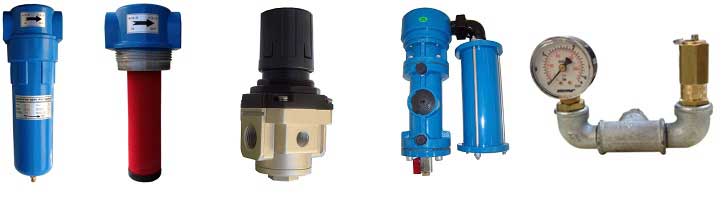

• Sandblasting Pot Pressure Safety Devices |
|
NO |
PRODUCT NAME |
DESCRIPTION |
QUANTITY |
1 |
Sandblasting Pot, Hydrostatic Tested
|
320 lt |
1 Pcs |
2 |
Air Filter, Compressed |
SF 6000 |
1 Pcs |
3 |
Sand Volume Setting Valve |
Casting Type |
1 Pcs |
4 |
Sandlasting Adapter |
For Venturi Type Nozzles |
1 Pcs |
5 |
Boron Carbide Wet Blasting Nozzle, Venturi Type |
DWR 8 |
1 Pcs |
6 |
Sandblasting Hose |
1” |
10 mt |
8 |
Sandblasting Helmet |
Comfort Brand, German Made |
1 Pcs |
9 |
Respiratory Filter |
Activated Carbon ½” |
1 Pcs |
10 |
Automatic Blasting Valve |
Contracor Brand, German Made |
1 Pcs |
11 |
Automatic Blasting Trigger |
Contracor Brand, German Made |
1 Pcs |
12 |
Pneumatic Valve Air Hose |
5,5x8 mm |
20 mt |
13 |
Pneumatic Helmet Air Hose |
12x8 mm |
10 mt |
14 |
Sanblasting Suit |
Chamois Leather |
1 Pcs |
15 |
Claw Coupler |
1 ¼” -1” Screwed |
1 Pcs |
16 |
Claw Coupler |
1” Hose |
1 Pcs |
17 |
Respiratory Safety Pressure Regulator |
½” |
1 Pcs |
18 |
Pot Safety Pressure Regulator |
1 ¼” |
1 Pcs |
OPTIONAL EQUIPMENT |
NO |
PRODUCT NAME |
DESCRIPTION |
QUANTITY |
1 |
Sandblasting Hose |
1” |
- |
2 |
Angular Blasting Nozzle |
8 mm 45° |
- |
3 |
Boron Carbide Flat Blasting Nozzle |
DN 8 |
- |

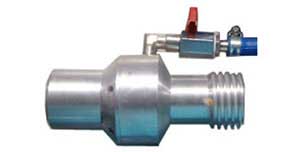

| WET SANDBLASTING NOZZLE |
 |
Wet blasting nozzle externally damps around the consumable material sprayed with compressed air to serve as a screen to prevent dust formation and spreading. This improves the impact on the environment and the visibility of the operator by providing dust-free sandblasting in the absence of dust filter systems.
It is a suitable solution for applications where dust is not desired. |
|
AREAS OF USE - WET SANDBLASTING POT |
Wet sandblasting pot is an alternative choice for sectors such as extrusion, molding, automotive, defense industry, aviation, glass.
Weapon, rim, marble sandblasting
All the polishing, roughening and cleaning tasks that require surface preparation
In maintenance and repair applications, removal of residual substances and surface finishing
Cleaning of injection, extrusion and casting molds
Paint, rust and coating cleaning
Surface preparation before bonding, paint and coating
Achieve high surface quality for stainless steel and other special materials
It is used to clean small burrs on the produced parts.
The Automatic Pressured Wet Sandblasting Pot offers dust-free sandblasting with a wet blasting nozzle for all types of sandblasting installations and for high-performance work in all sandblasting works. |
| MOBILE WET BLASTING POT TECHNICAL DATA |
| Volume Of the Pressured Sandblasting Pot |
300 lt |
| Working Pressure of the Blasting Pot |
4-10 BAR |
| Test Pressure of the Blasting Pot |
16 BAR |
| Air Intake of Pressured Sandblasting Pot |
1 1/4" |
| Weight of the Pressured Sandblasting Pot |
180 Kg |
| Air Consumption |
3-4 m3/min (6-8 BAR) |
| Height of the Mobile Sandblasting Pot |
1,60 mt |
| Diameter of the Mobile Sandblasting Pot |
64 cm |
| Sandblasting Pot Valve |
Nodular Cast Iron |
| Compliance of Mobile Sandblasting |
Approve |
| SANDBLASTING ABRASIVES THAT CAN BE USED AT WET BLASTING POT |
| TYPE |
FEATURE |
PURPOSE OF USAGE |
| Aluminum Oxide |
Hard , Angular |
Roughening , Paint Removal |
| Glass Beads |
Hard , Spherical |
Finishing , Polishing |
| Garnet |
Hard , Angular , Economic |
Roughening , Paint Removal |
| Steel Shot |
Hard , Spherical, Economic |
Tension Relieving, Cleaning |
| Stainless Steel Shot |
Hard , Spherical |
Finishing , Polishing , Tension Relieving |
| Silicon Carbide |
Hard , Angular |
Roughening , Paint Removal |
| Ceramic Shot |
Hard , Spherical |
Finishing , Polishing |
| Glass Sand |
Hard , Angular |
Roughening , Paint Removal |
| Steel Grit |
Hard , Angular , Economic |
Roughening , Paint Removal |
| Silica Sand |
Hard , Angular , Economic |
Roughening , Paint Removal |
|
 |
|
